The Infratech Contactor Panel with Digital Timer expands the Value Control system by adding timer functionality to simple on/off and duplex switch setups. It is designed for use with all Infratech heaters, providing a cost-effective way to control multiple heaters without investing in custom dimming panels. Compatible with Infratech Duplex Stack Switch, Simple On/Off Switch or the included Infratech Smart switch by Bond.

• Enables integration of timers and other 120 VAC controls, including smart devices.
• Max 6,000 watts at 240V per contactor.
• Compact design allows for indoor surface or flush mount applications.

More about this product

What is it Used For?

The Contactor Panel allows you to add timed control to Infratech heaters when using basic switches. It is ideal for projects where automatic shutoff, scheduling, or smart control integration is desired—without the cost of advanced dimming systems.

What is it Compatible With?

The contactor panel is designed for use with all Infratech heaters, single or dual element.

What are the Benefits?

• Peace of mind in integrating a timer without having to expand your budget on custom dimming panels and controls.
• Ability to mix and match heaters to be controlled by a single switch.
• Smart on/off switch included with the panel.

How Does it Work?

Contactor panel must be installed indoors in a dry, well-ventilated space.

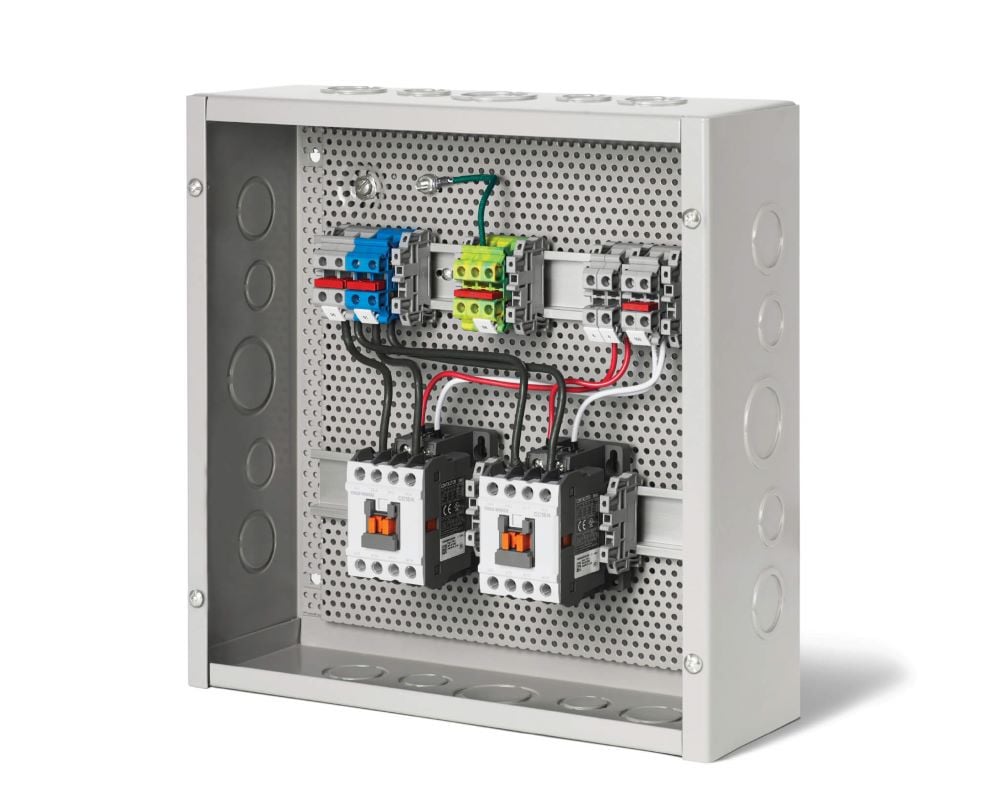

• Can be surface mounted on wall - comes with a front cover.

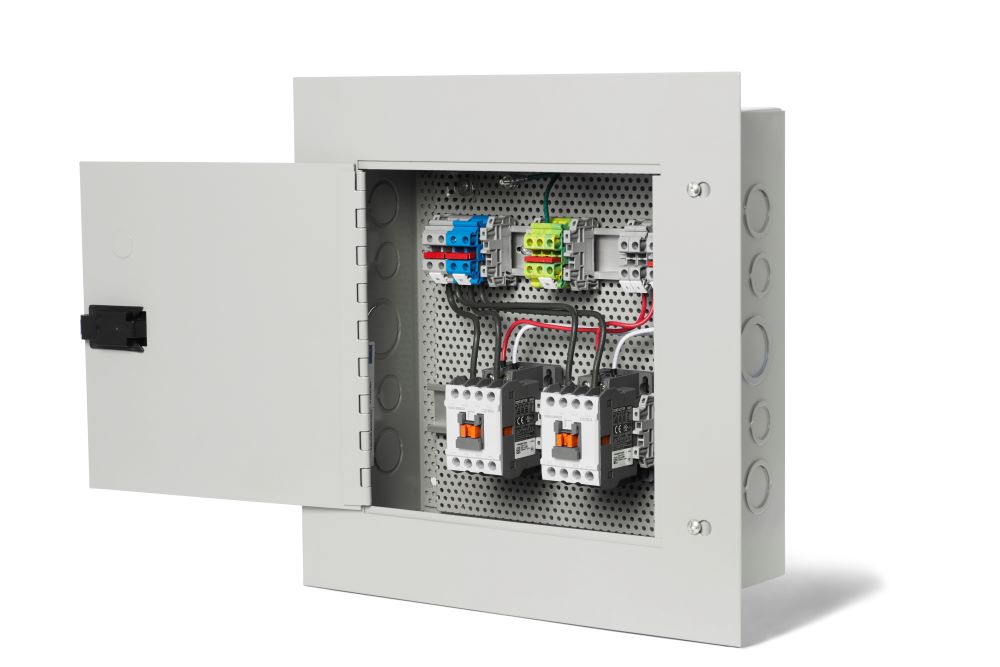

• Can be recessed into a wall - access door can be purchased separately.

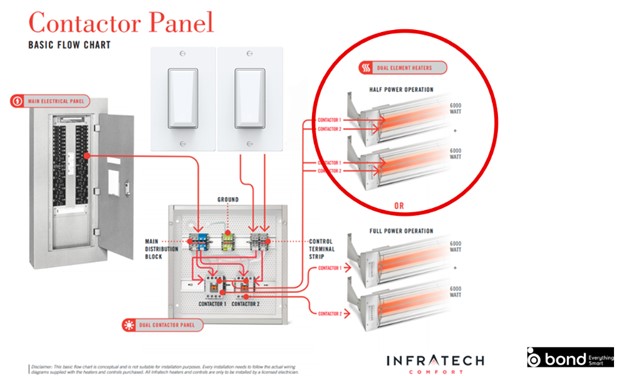

Contactor panel can be ordered as a single contactor, or a dual contactor panel and whichever heaters are connected to each contactor will be controlled together.

• Each contactor in the panel can handle up to 6,000 watts max at 240VAC.
• Wattages do not need to match, but they cannot exceed 6,000 watts.
• EX: (2) 6,000 watt heaters can be controlled on a dual contactor panel for full on/off power.

• EX: (2) 6,000 watt heaters can be controlled on a dual contactor panel with hi/lo power.
• Element 1 on heater 1 and Element 1 on heater 2 = controlled together.
• Element 2 on heater 1 and Element 2 on heater 2 = controlled together.

What's included?

What needs to be ordered Separately?

• A smart on/off Bond switch is included with every panel. You can also order an on/off or duplex switch from Infratech if you do not want a smart switch, or you can use your own third party 120V switch.
• Purchase an on/off switch for single contactor panels.
• If you are recessing the panels into the wall, you will need to purchase the access door separately.
