Product Overview

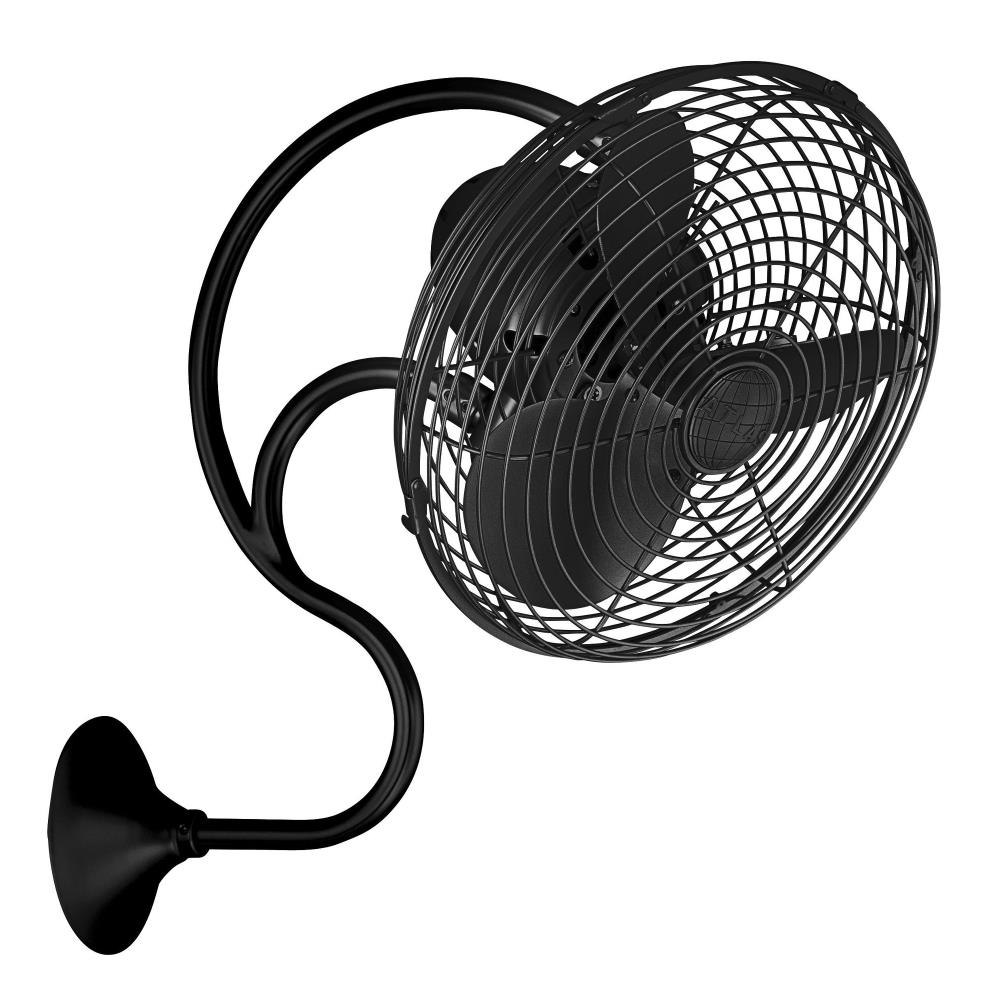

Enhance airflow efficiency with the Barrack Mews 3 Blade Wall Fan, expertly engineered in a contemporary and transitional Art Nouveau style. Standing 20 inches tall and 13 inches wide, this wall-mounted fan features a distinctive grand, arching gooseneck design that enables maximum multi-directional airflow, ideal for optimizing ventilation in compact or challenging spaces.
Technical Specifications
The fan’s 13-inch blade span, combined with a precise 31-degree blade pitch, delivers robust airflow performance, achieving 868 cubic feet per minute at low speed and up to 1302.65 cubic feet per minute at high speed. Constructed from durable cast aluminum and heavy stamped steel, the Barrack Mews fan ensures long-lasting reliability and structural integrity. The blades are finished to match the housing and component parts, available in brushed nickel or textured bronze finishes, suitable for damp locations but not recommended for saltwater or oceanfront environments.
Installation and Operation
Designed for wall mounting, the Barrack Mews fan includes a side-mounted wall junction box and a standard 3-speed Decora style white wall control for convenient speed adjustment. The oscillation mechanism operates independently of the fan blades via a required three-wire system, allowing for versatile airflow direction control. Remote control operation is available upon inquiry, providing additional convenience options.
Key Features
- Three-speed wall control for customizable airflow settings
- Oscillation mechanism independent from blade operation
- Durable construction with cast aluminum and stamped steel
- Blade pitch optimized at 31 degrees for efficient airflow

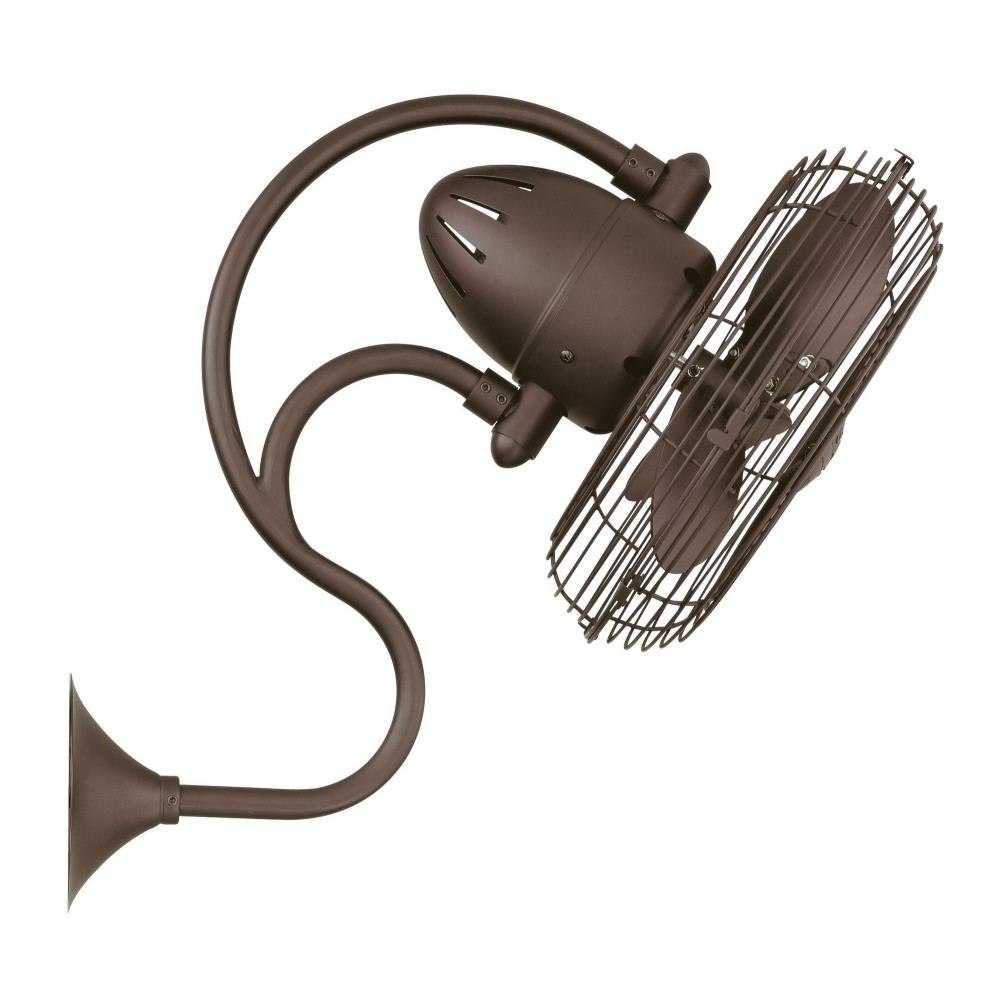

- Available in brushed nickel or textured bronze finishes
- Suitable for damp locations (excluding saltwater/oceanfront)
What’s Included
- Barrack Mews 3 Blade Wall Fan unit
- Side-mounted wall junction box
- 3-speed Decora style white wall control
What Needs to Be Ordered Separately
- Remote control (available upon request)
