Product Overview

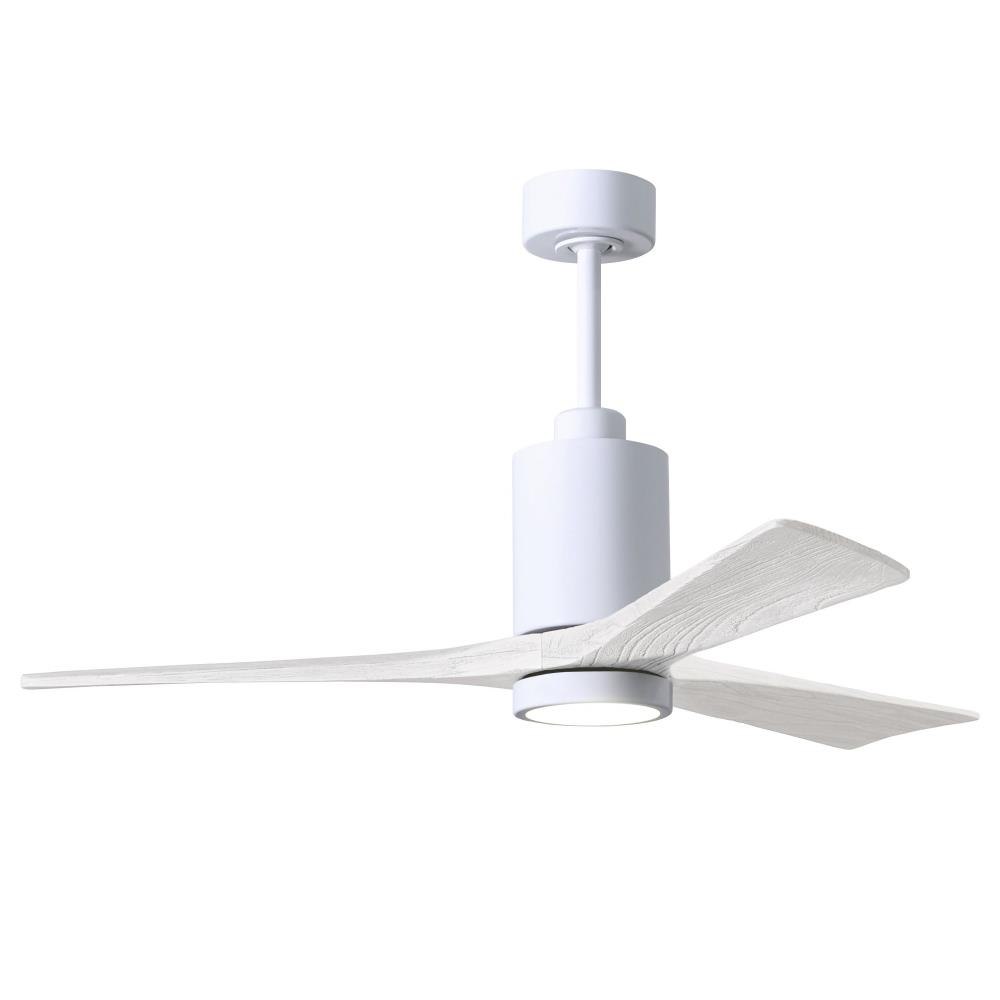

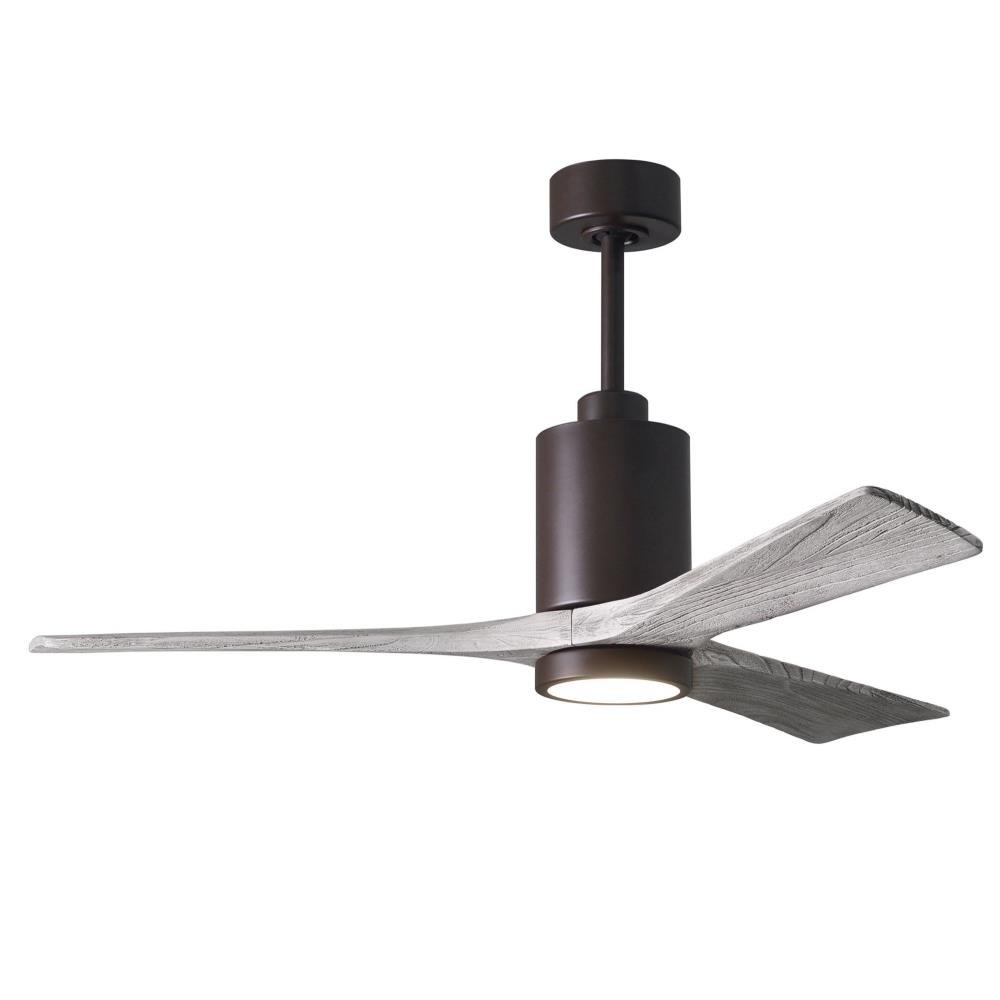

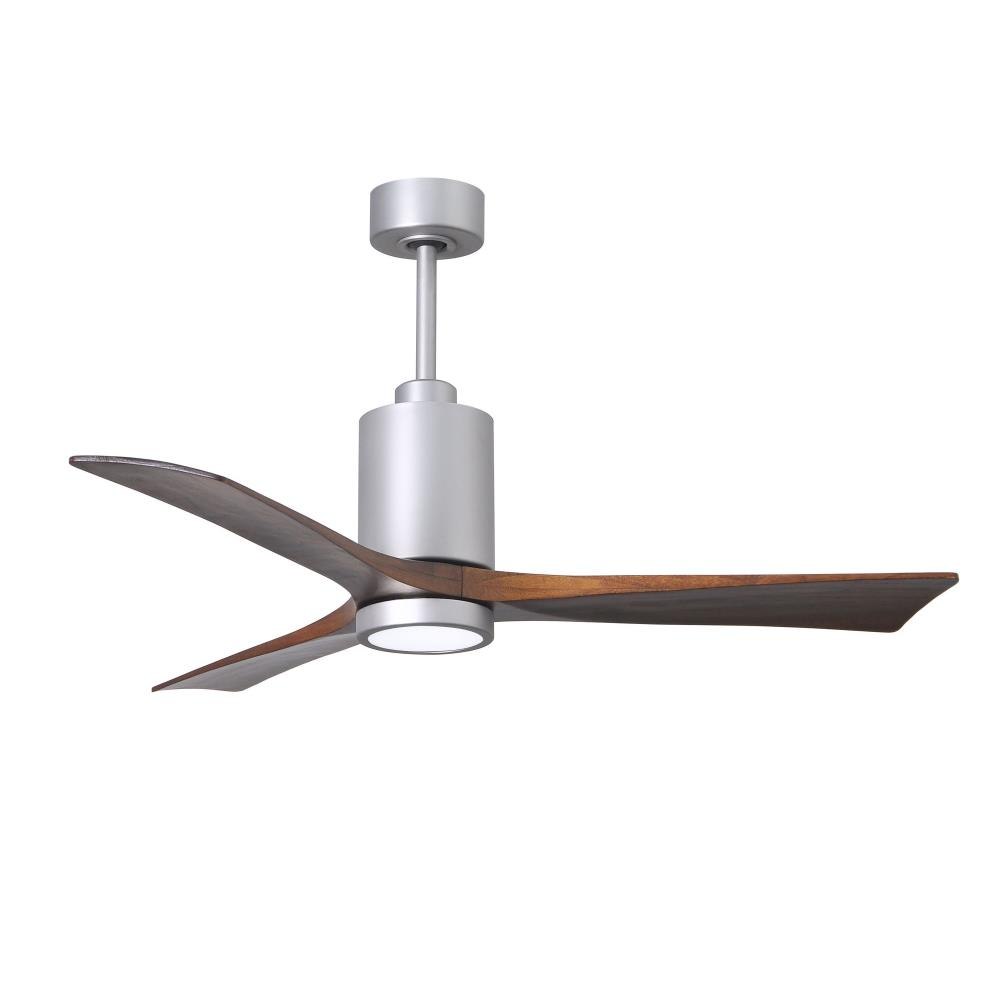

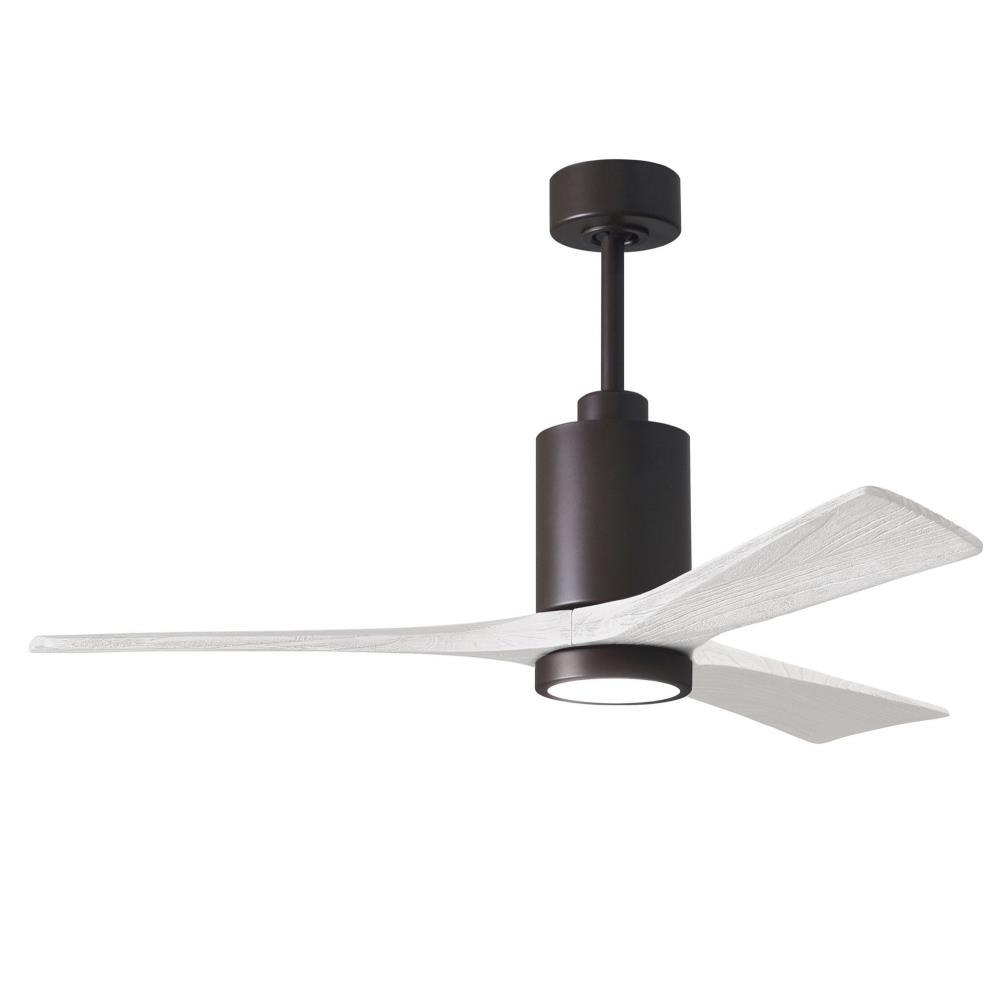

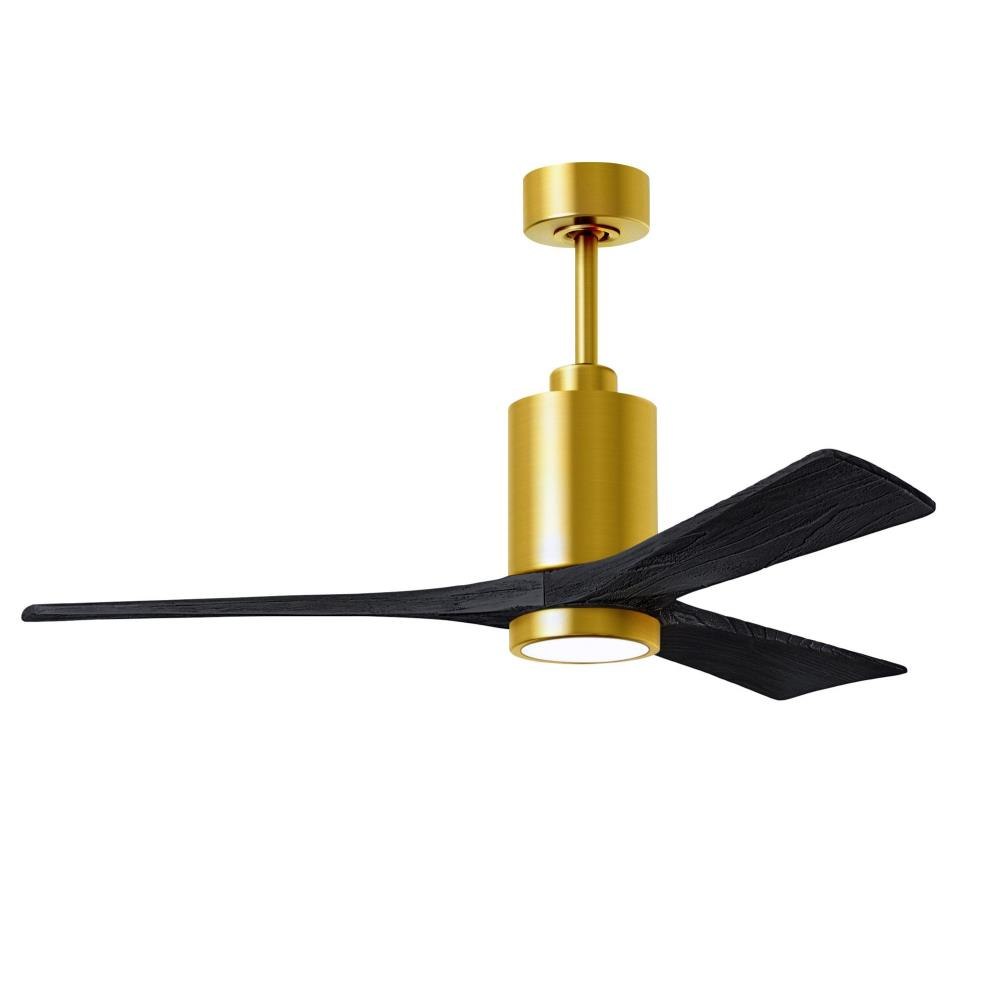

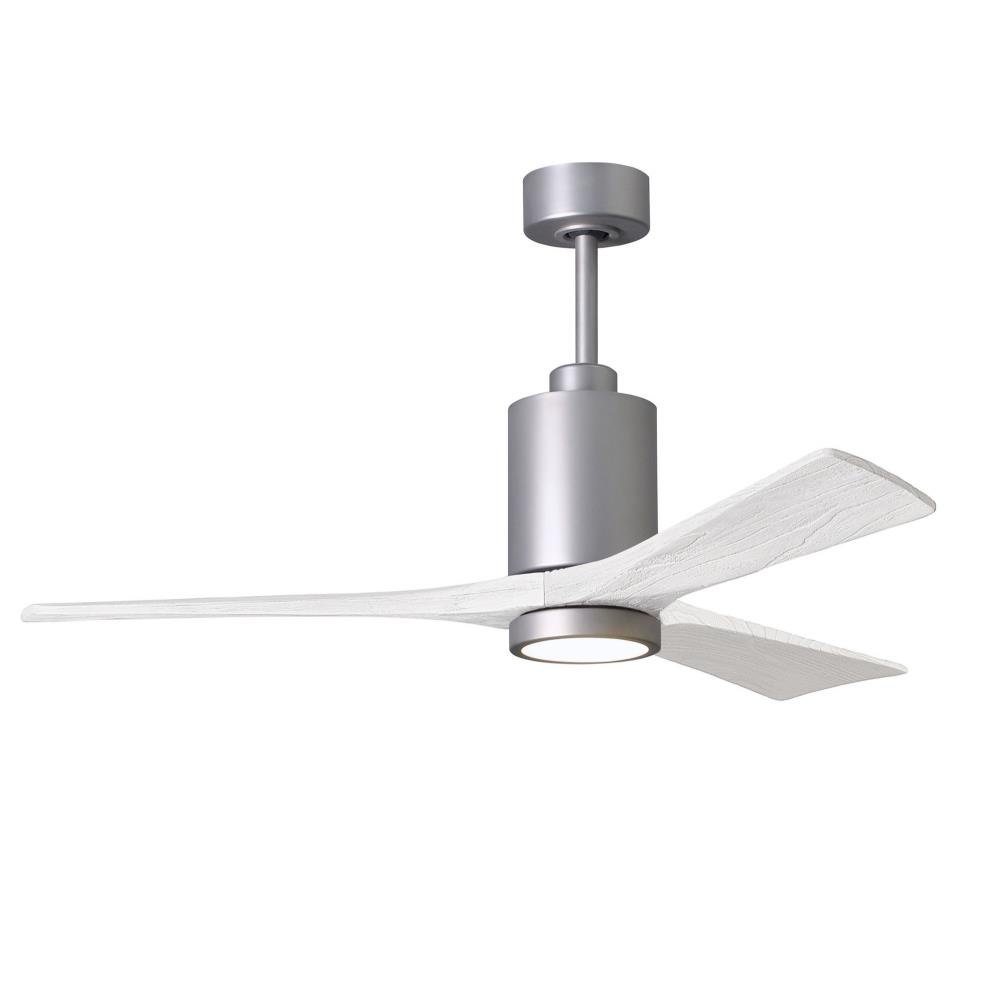

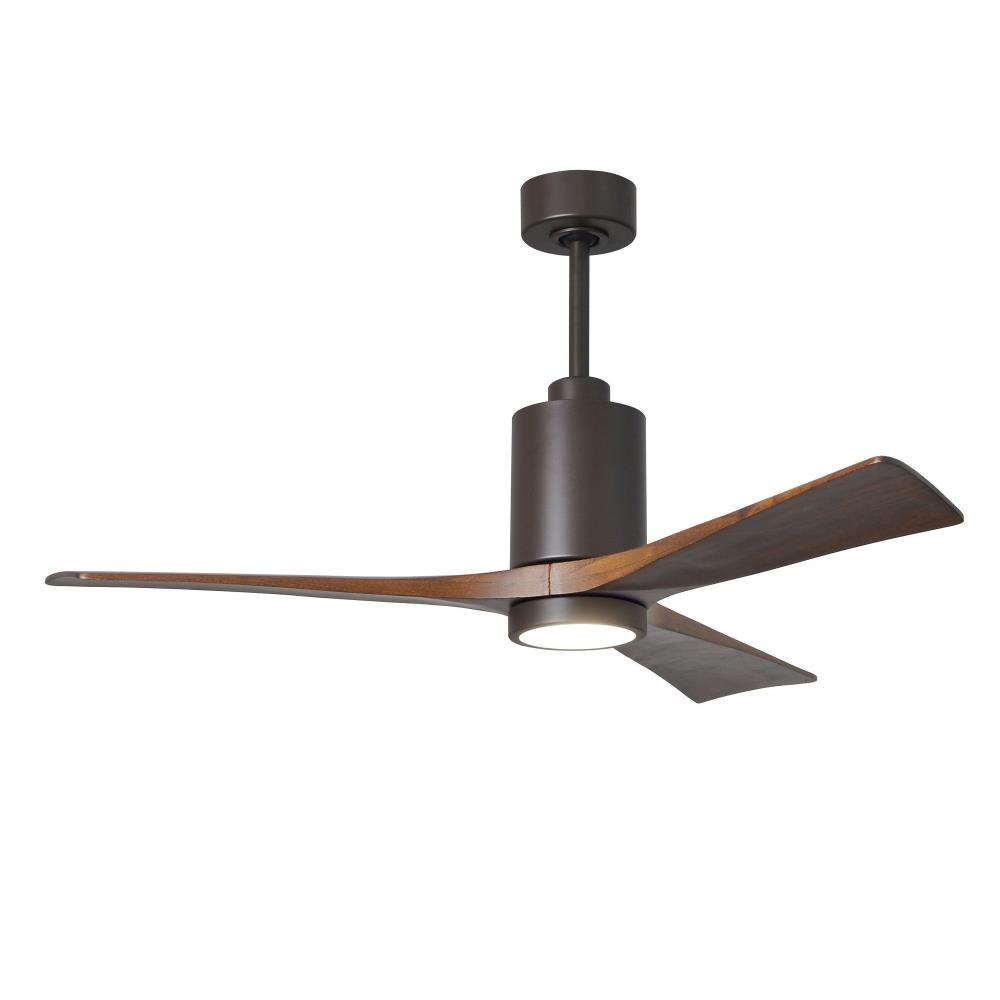

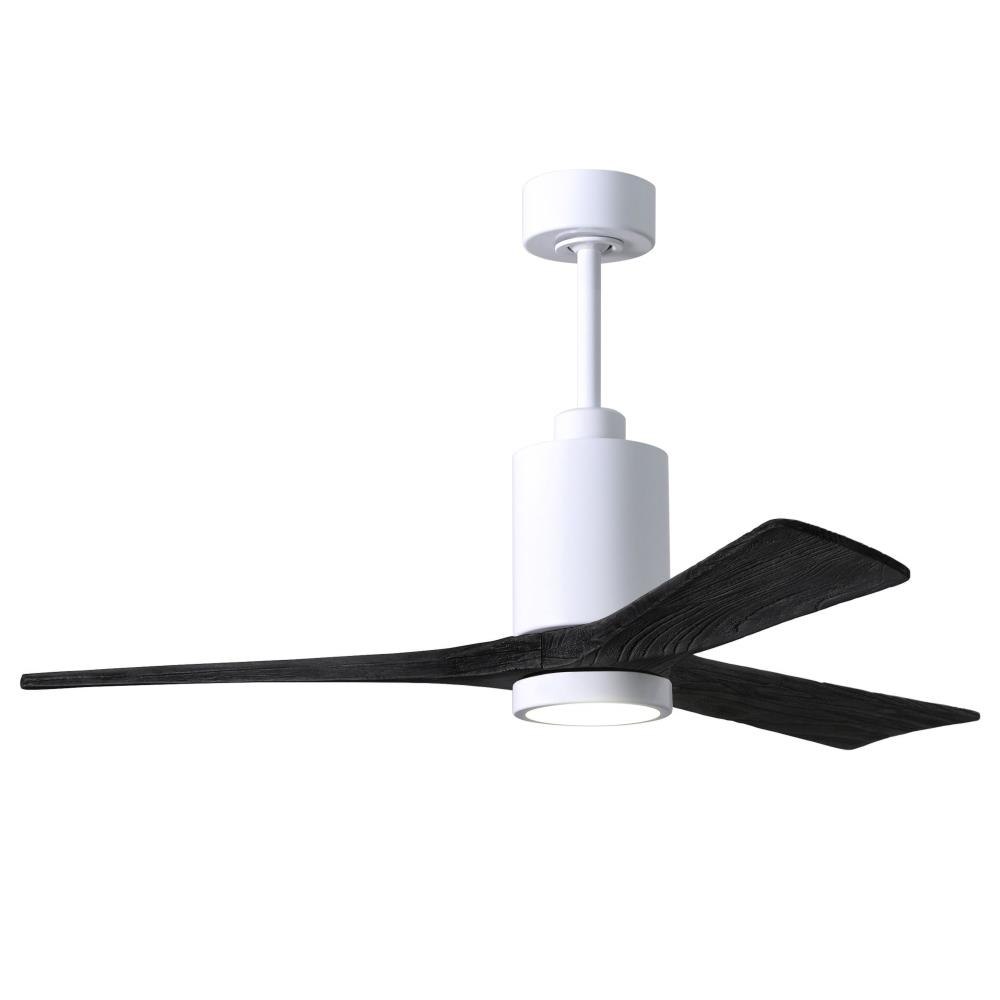

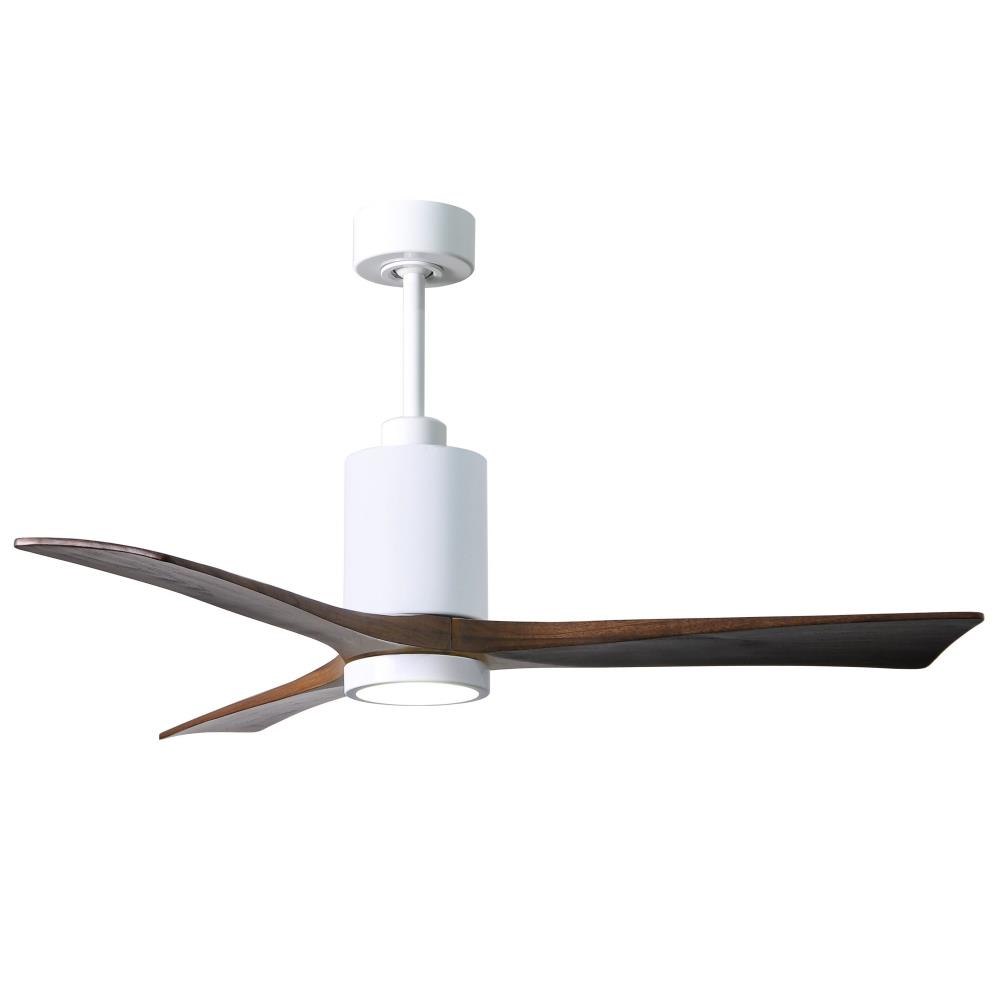

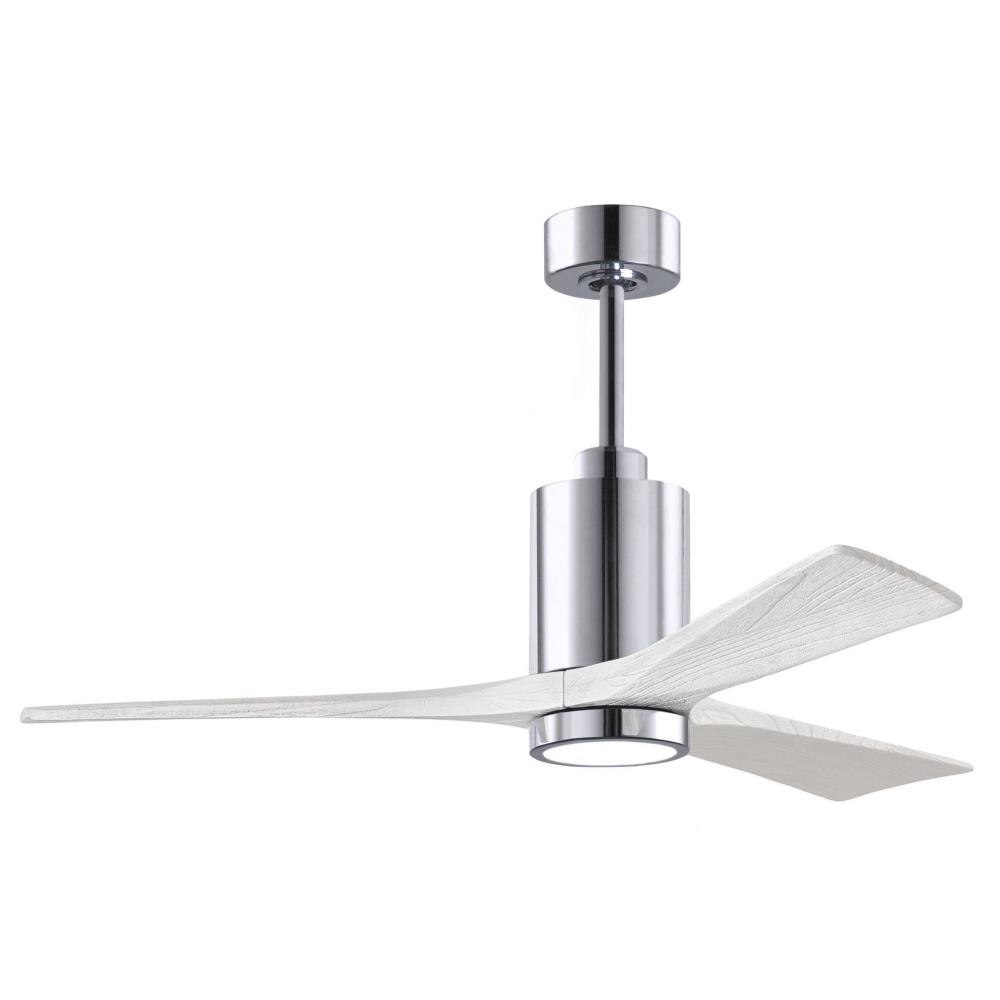

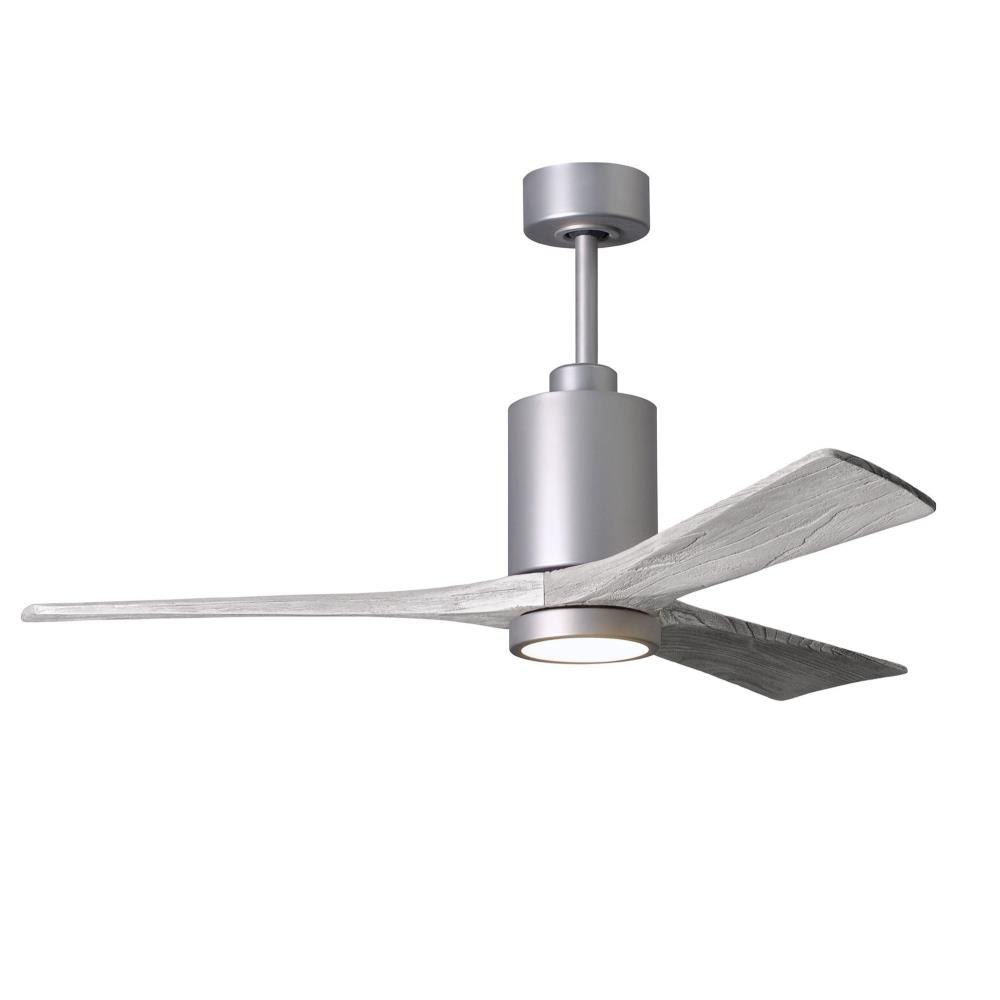

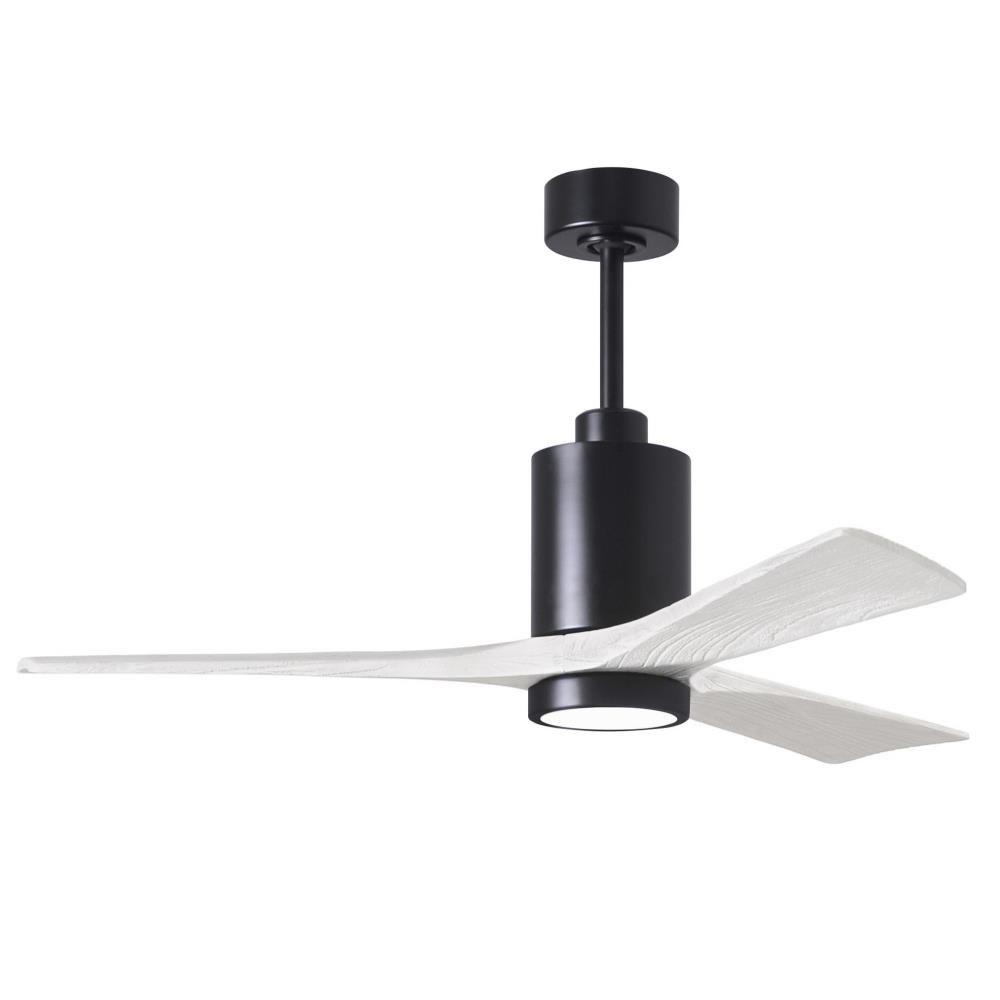

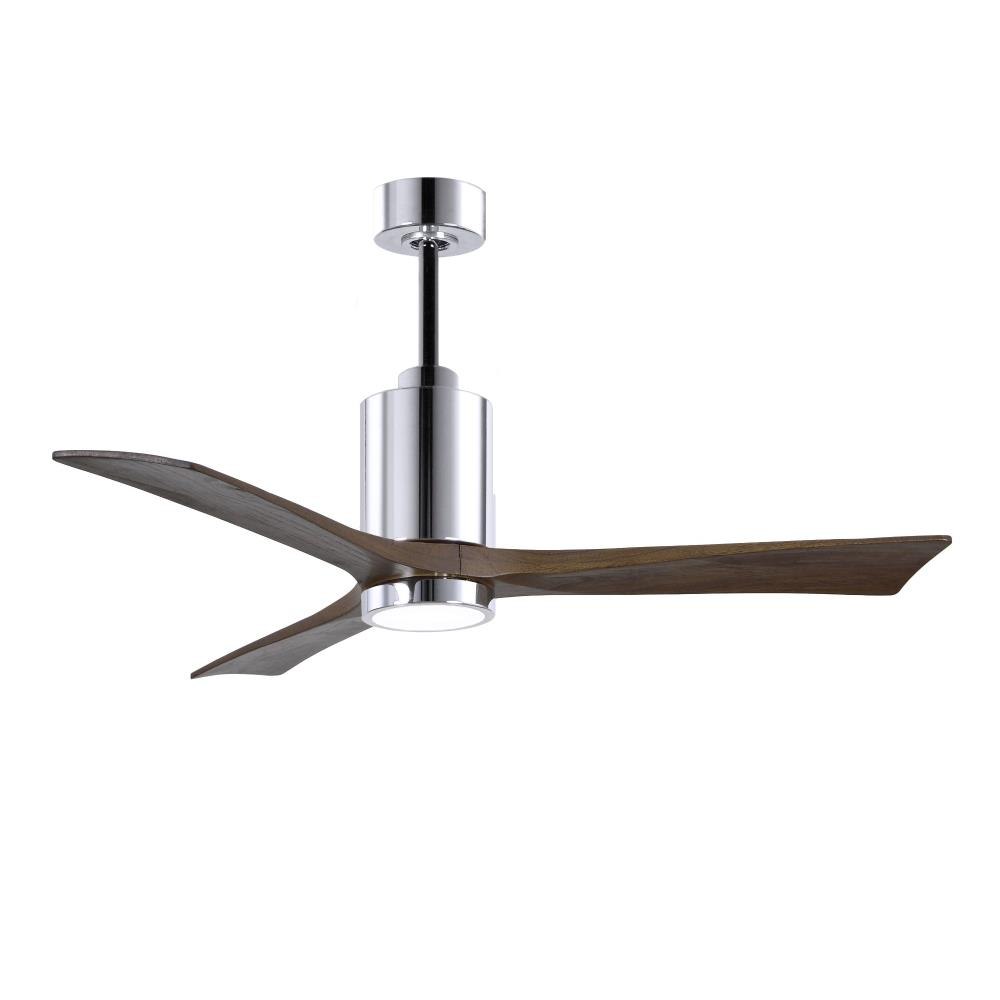

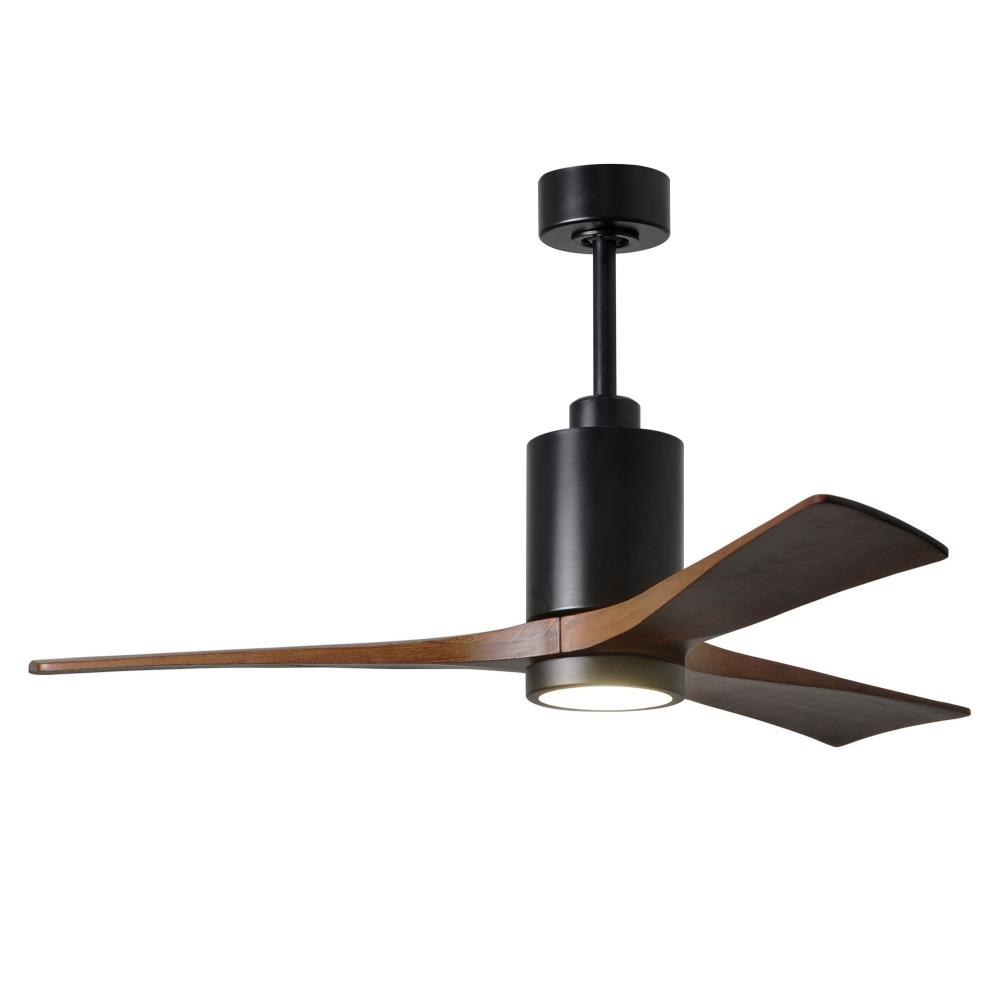

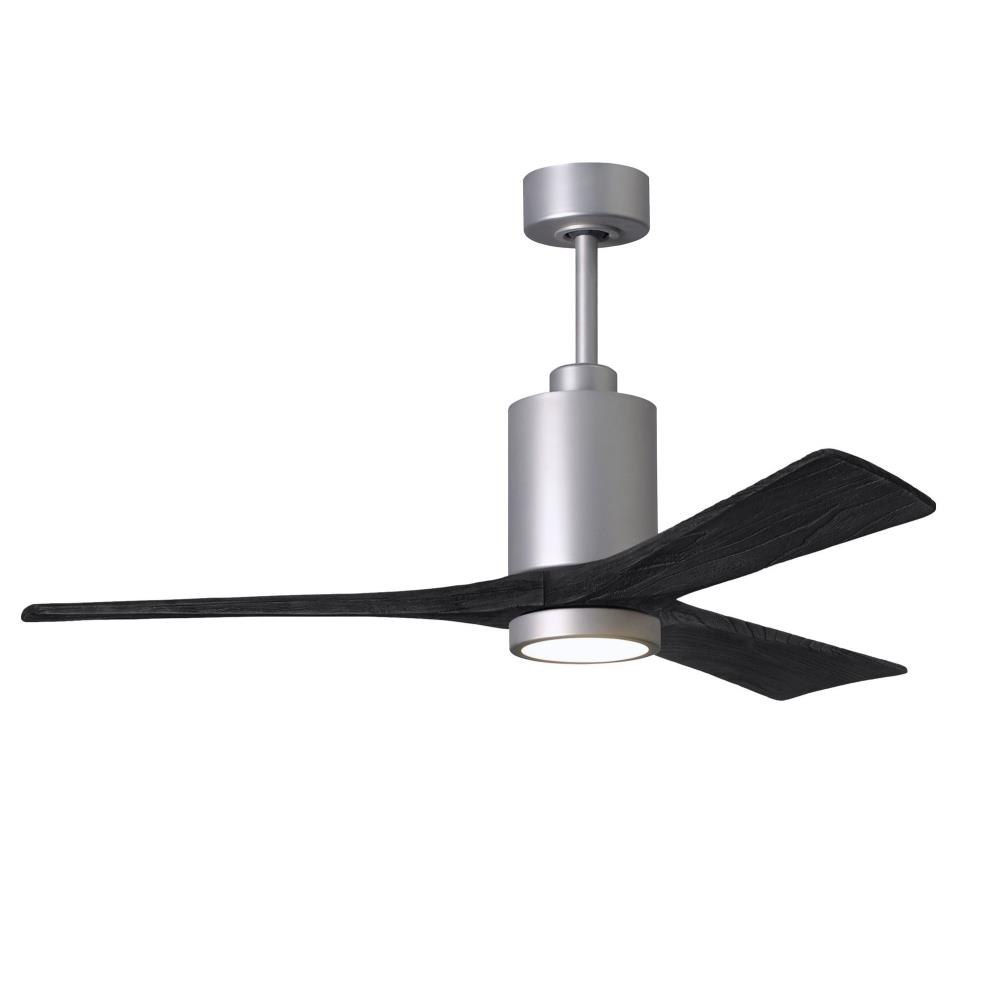

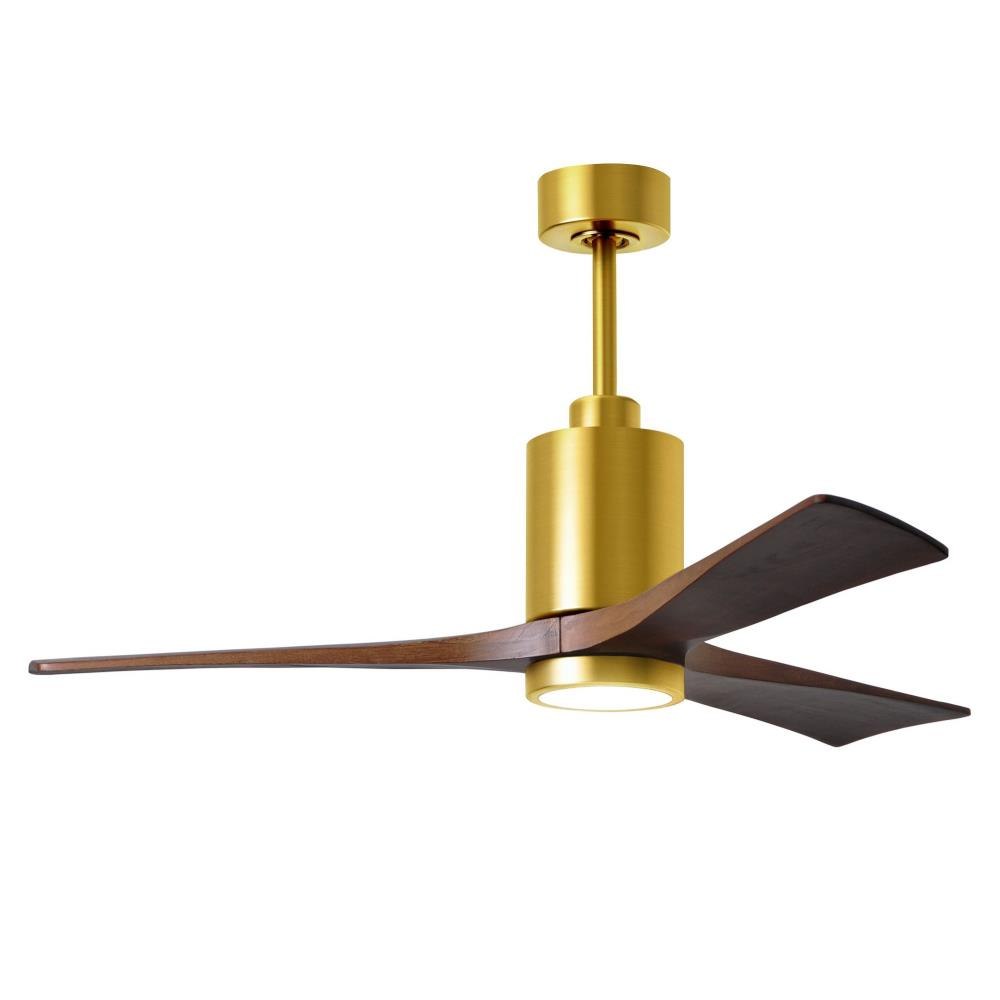

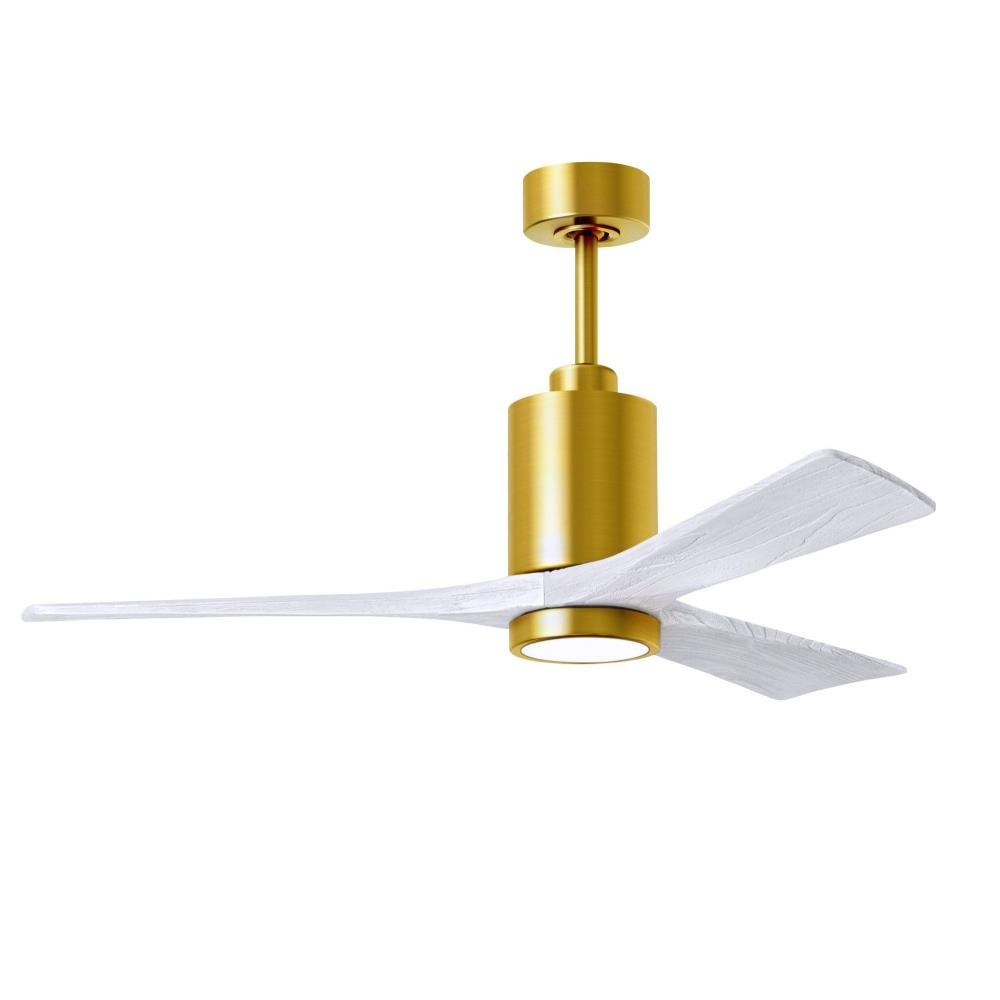

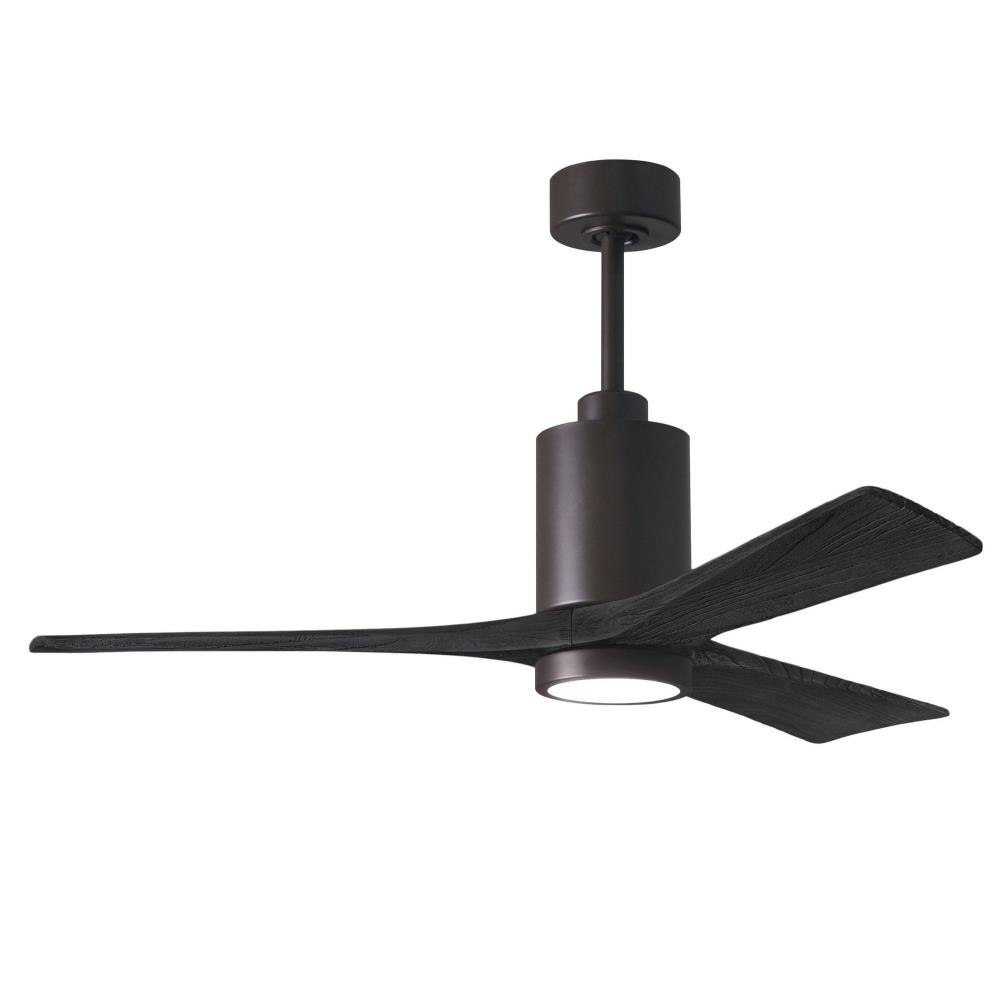

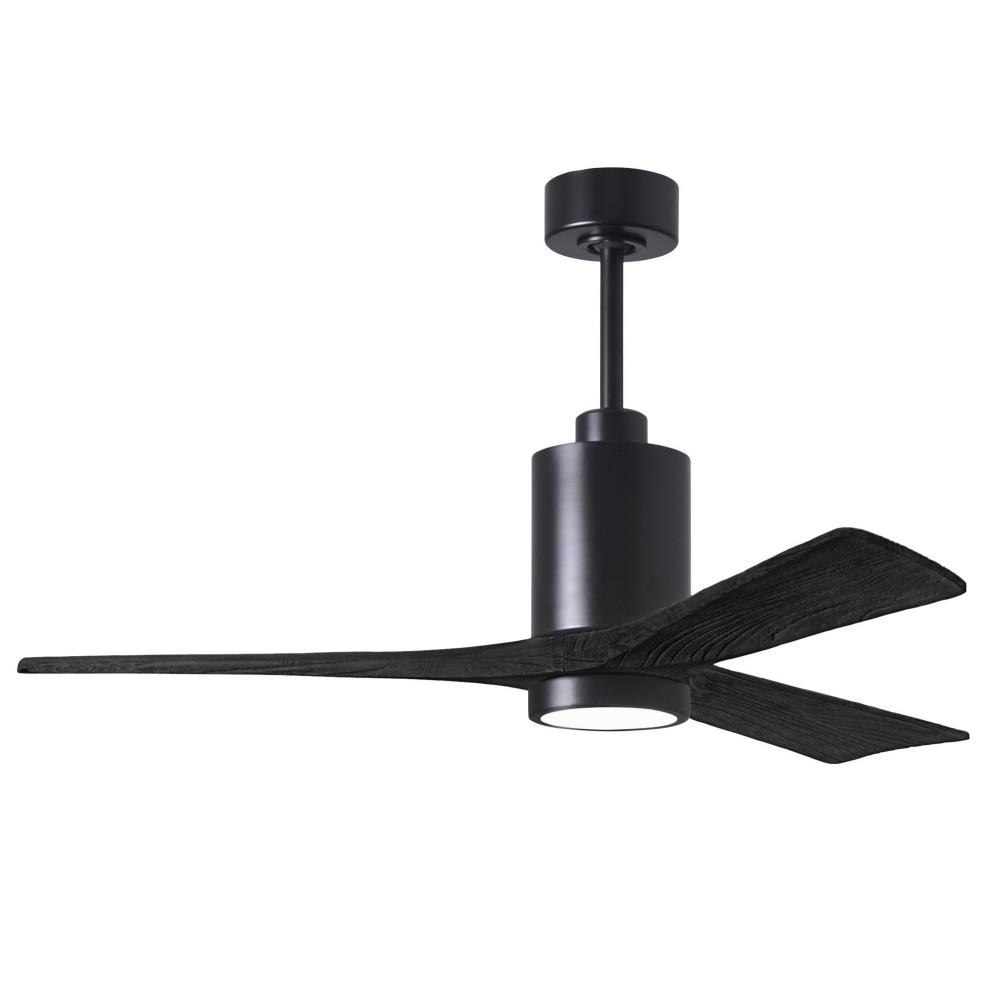

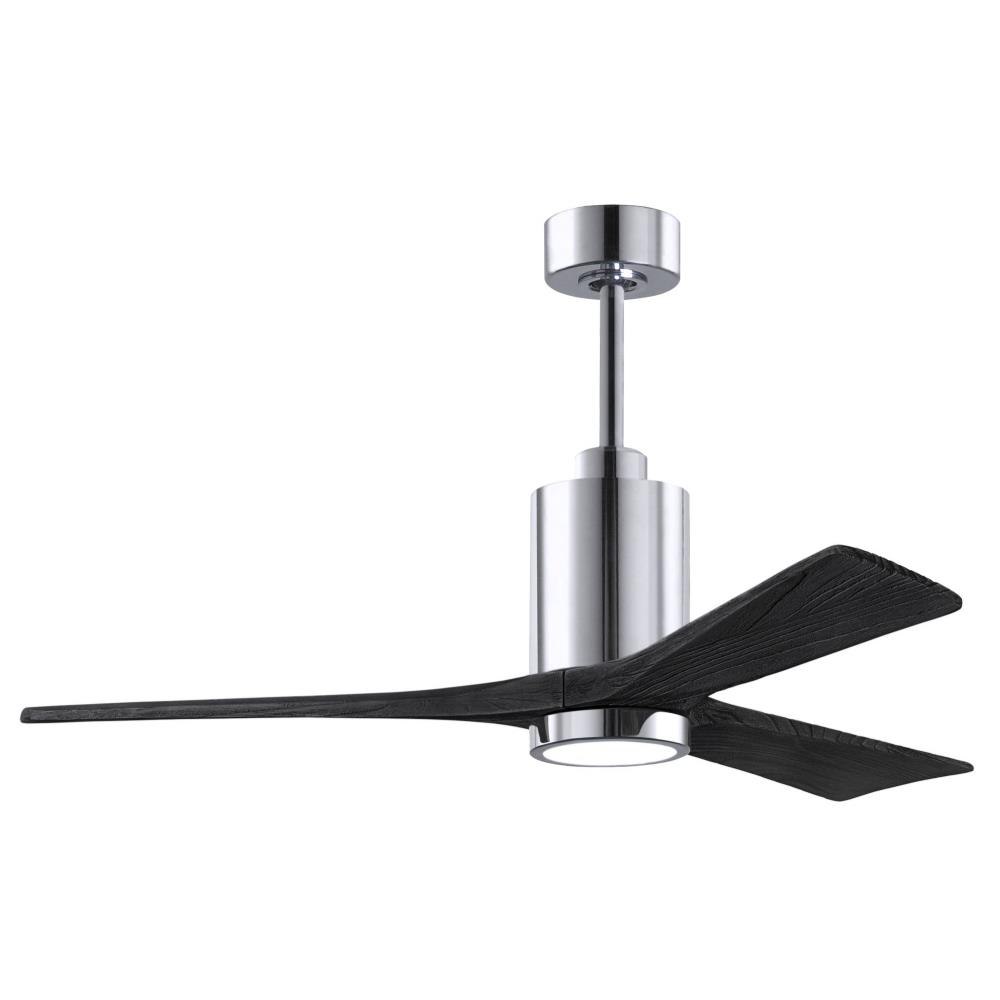

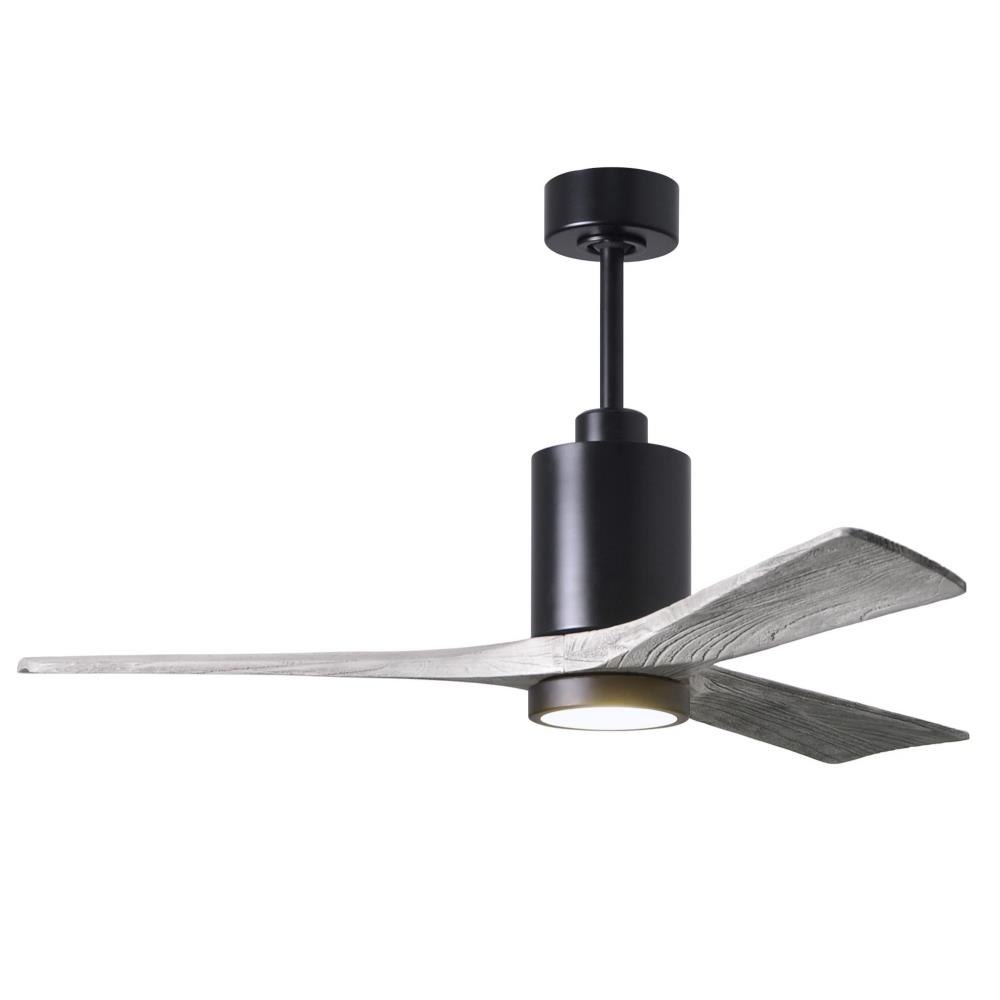

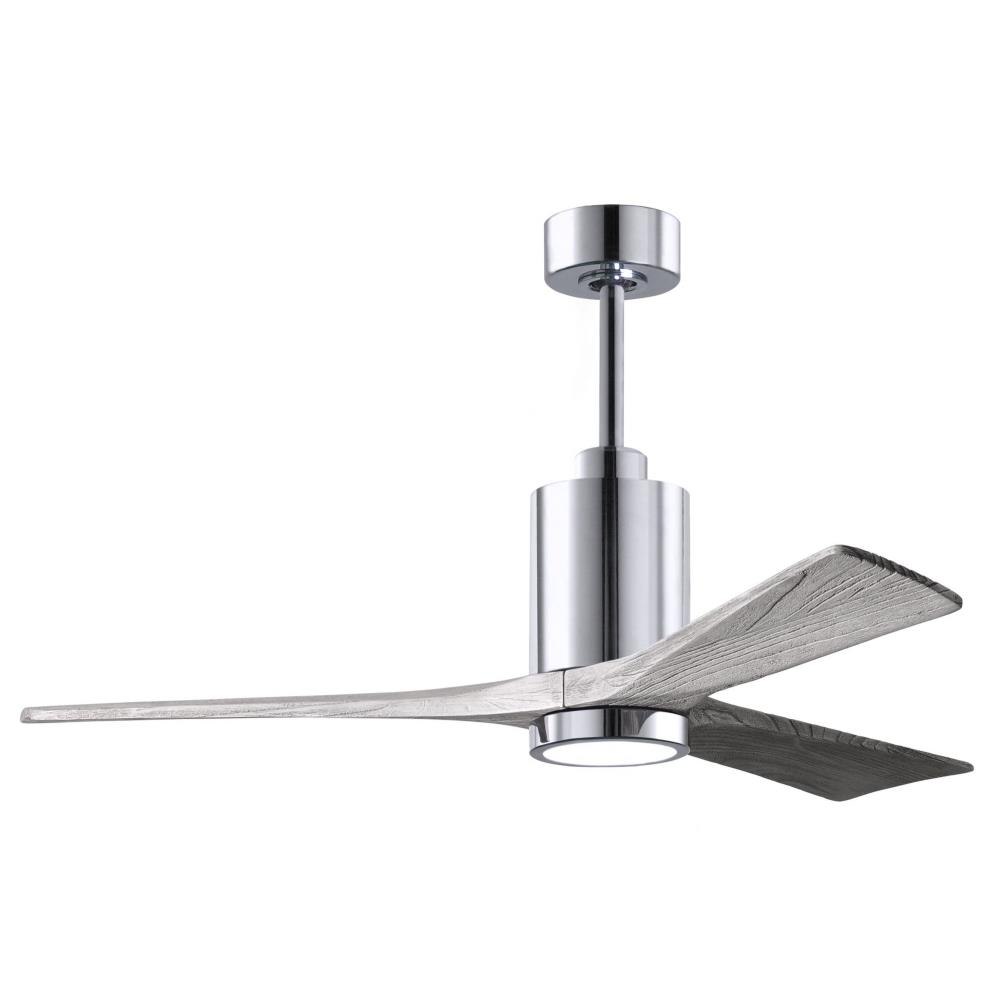

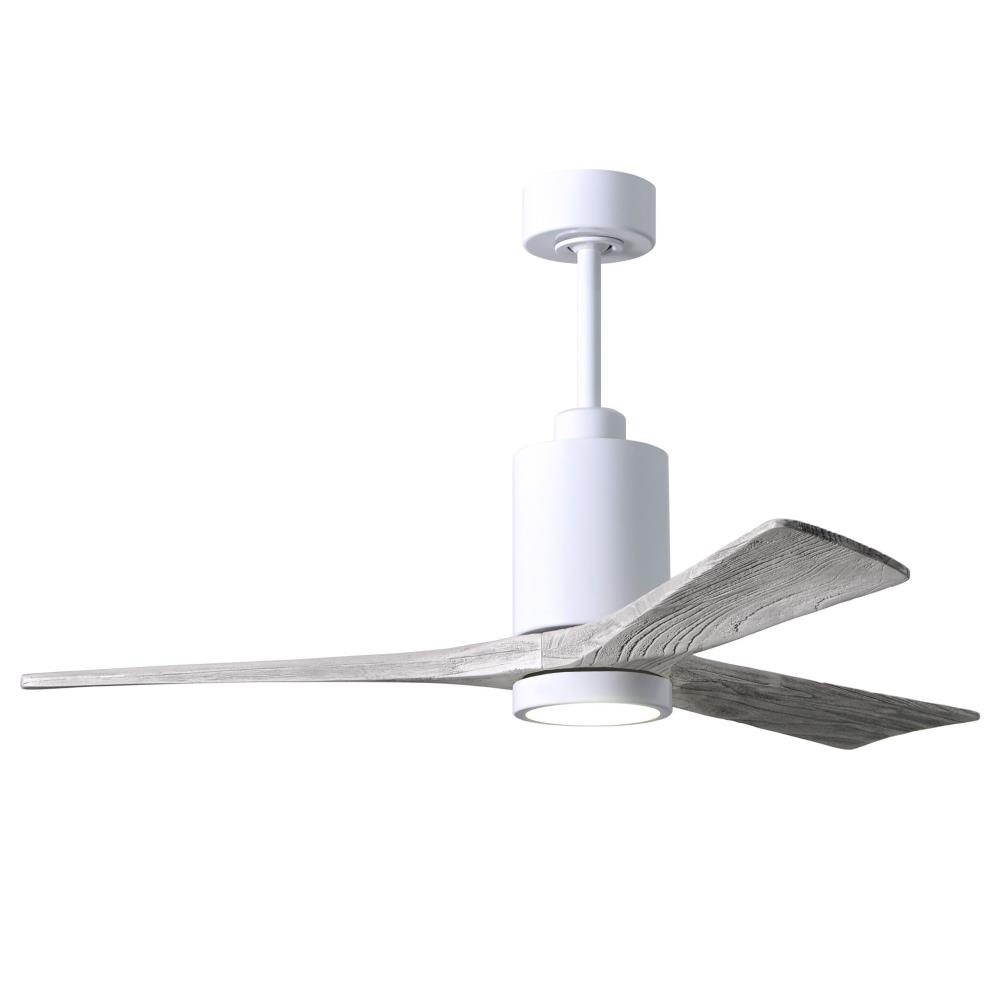

Enhance your commercial or residential space with the Eliot Parc-3 Three Blade Ceiling Fan, a 52-inch wide fixture that combines contemporary design with advanced functionality. Featuring solid balsa wood blades and a balanced cylindrical DC motor housing, this ceiling fan delivers efficient airflow with minimal noise, making it suitable for a variety of interior environments including bedrooms, dining rooms, offices, and patios.
Technical Specifications
The Eliot Parc-3 ceiling fan operates at 6 speeds, with a blade pitch of 15 degrees and a blade span of 52 inches. It produces a lumen output of 1692.95 lumens through its integrated, eco-conscious LED light kit, which is dimmable and rated for a lifespan of up to 60,000 hours. The fan achieves an airflow of 1,283 CFM on low speed and up to 6,077 CFM on high speed, supported by a motor wattage of 32.03 watts. Noise levels remain silent during operation, with RPM ranging from 51 at low speed to 219 at high speed. The fan’s airflow efficiency averages 182 CFM per watt, demonstrating both energy efficiency and powerful air circulation.
Installation and Compatibility

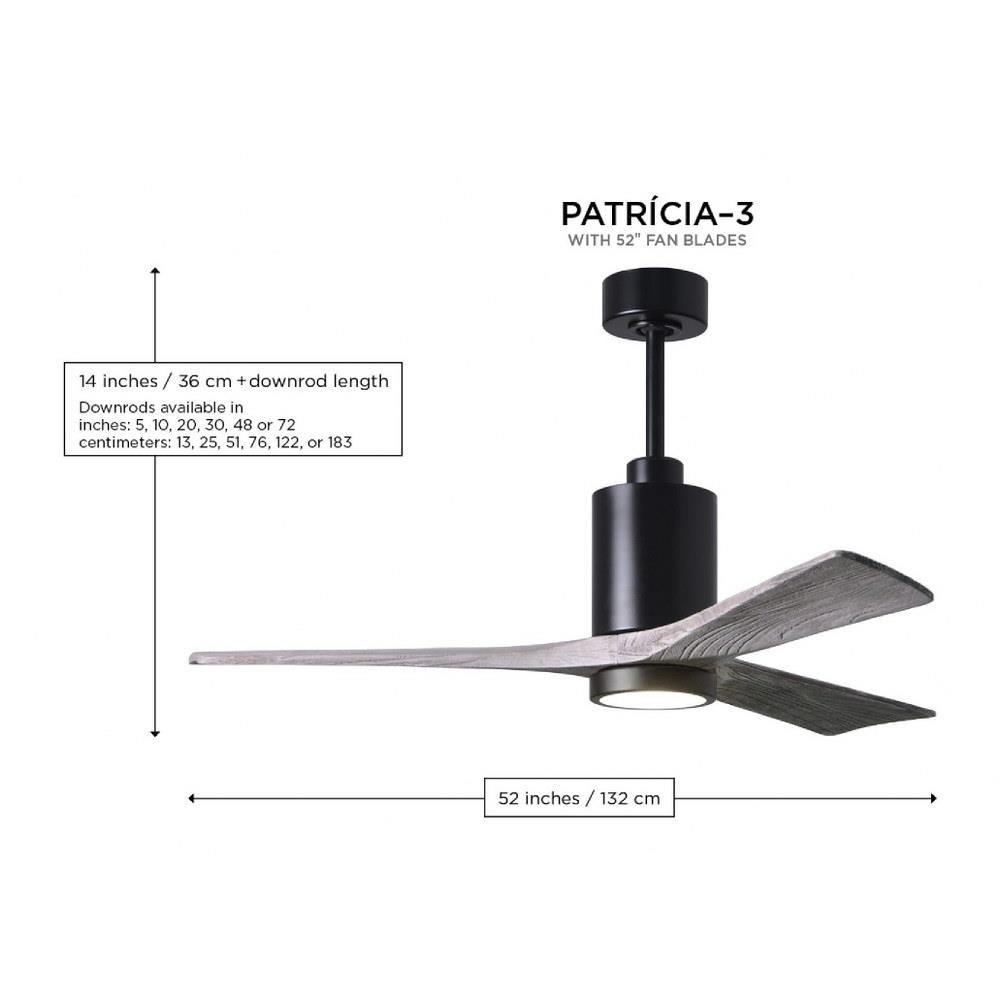

Designed for versatility, the Eliot Parc-3 can be mounted on both flat and vaulted ceilings using various downrod lengths (5", 10", 20", 30", 48", and 72") to accommodate ceiling heights and installation preferences. The overall drop from ceiling to fan is 14 inches, and the included canopy measures 6 inches in diameter. The fan is mounted via a stem hanging method, ensuring secure and stable installation. Regular maintenance is recommended to check support connections, brackets, and blade attachments twice yearly without needing to remove the fan.
Key Features
- Three solid balsa wood blades with 15° blade pitch for optimized airflow
- Integrated dimmable LED light kit with 1692.95 lumens output and 60,000 hours lifespan
- Whisper-quiet DC motor with six speed settings and high airflow efficiency (182 CFM/Watt average)
- Compatible with flat or vaulted ceilings and multiple downrod lengths for flexible installation
- Silent operation with RPM range from 51 (low) to 219 (high)
- Durable aluminum and steel construction ensuring longevity and stability
What's Included
- Eliot Parc-3 Ceiling Fan with three balsa wood blades
- Eco-conscious dimmable LED light kit
- Canopy (6-inch diameter)
- 1-10" Rod length included
- Shade for light kit
What Needs to Be Ordered Separately
- Additional downrods (5", 20", 30", 48", 72") for specific ceiling height requirements
