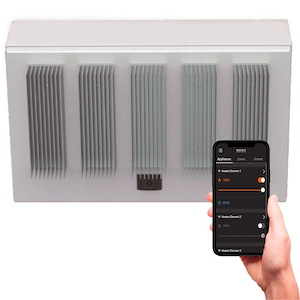

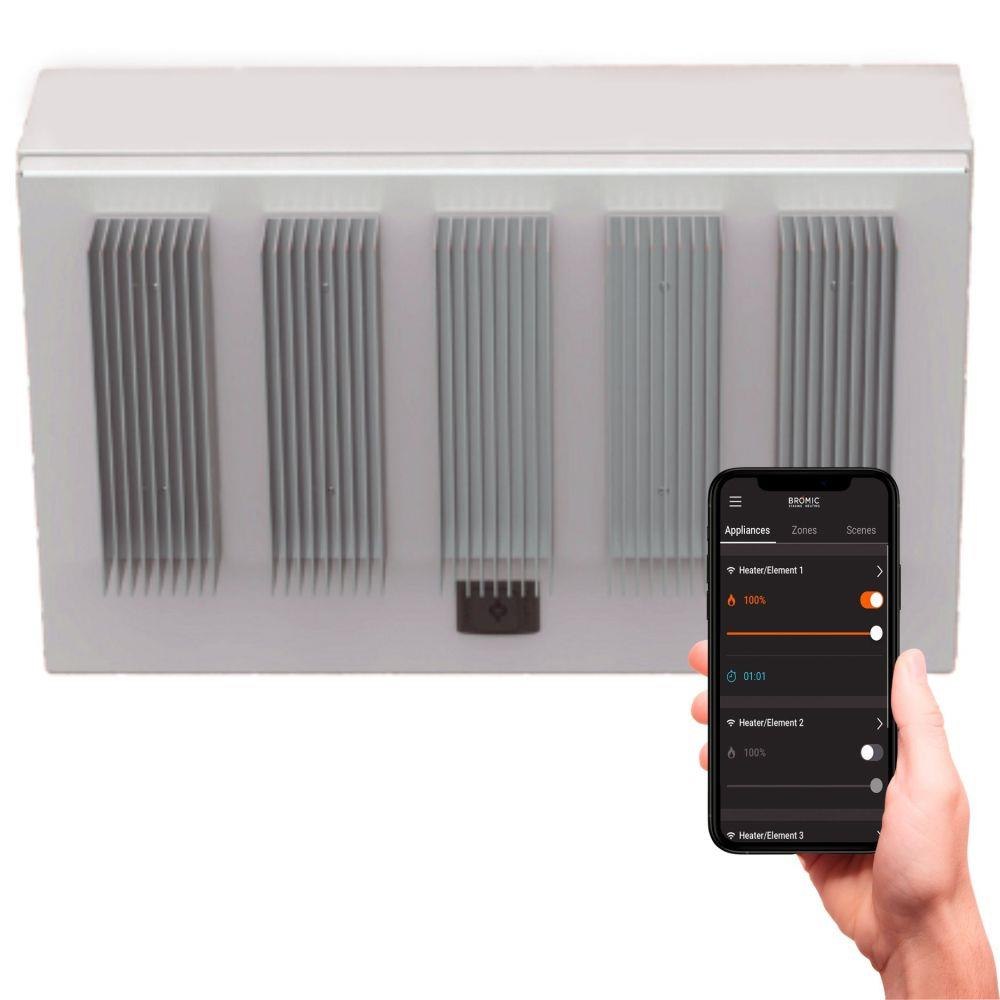

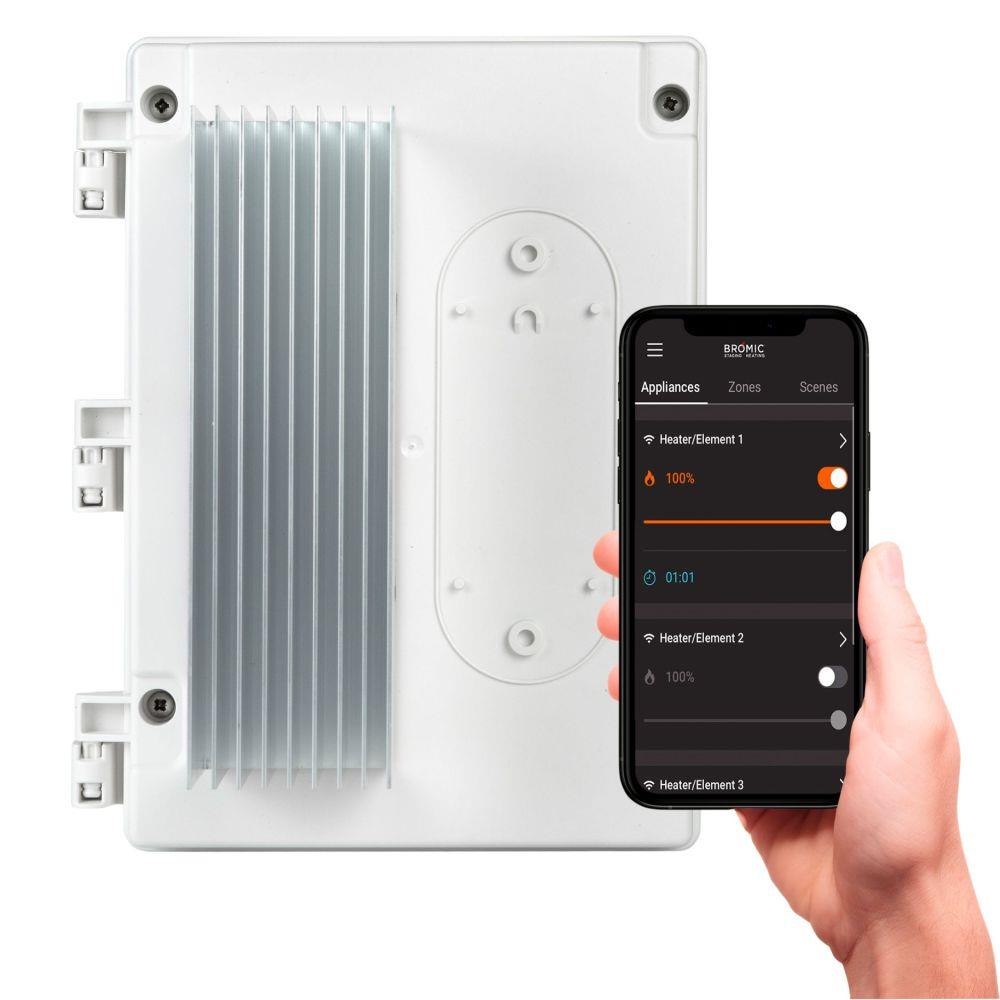

Bromic Heating - BH3130061 - Affinity - Smart Heat Dimmer Control - Multiple Channels

Bromic Heating’s new Dimmer Controls give customers customized control over heating output. These units require a smart device with internet connectivity, as well as the Bromic Smart-Heat App which is available on the App Store and Google Play Store. This product is rated for 208V-277V.

The base models provide both Bluetooth and Wi-fi communication capabilities for Bromic App control. The 5 channel controllers include options for ethernet connectivity or BMS integration via 0-10 VDC built-in, whereas these features can be added to the 1 & 2 CH controllers via an optional expansion board.

The Smart-Heat Control operates using a smart device with a Bluetooth or Wi-Fi connection. The mounting location of the Smart-Heat Control must be selected to ensure that it is within range for the selected communication method. Refer to Installation guide for mounting location requirements.

The Bromic Smart-Heat App is available on the App Store and Google Play Store.

Take control of your outdoor heating with Bromic Heating’s Affinity Smart-Heat Dimmer Controllers. Designed for seamless operation, these controllers allow you to remotely power your Bromic heaters on and off and dime up and down with the tap of a button. Compatible with a variety of communication methods, including Bluetooth, Wi-Fi, and optional ethernet connectivity, this solution simplifies your heating system management from anywhere using the Bromic Smart-Heat App. Whether you're setting up for a cozy night or managing a commercial space, this control system provides reliable, flexible, and easy-to-use functionality.

• Electric Heater Compatible: Suitable for the Platinum and Tungsten Collection electric heater models only.
• More Channels than Ever: compatible up to 277 volt and comes in available channel options of 1, 2 or 5 – with each channel input controlling up to 6000W of power.
• Complete On/Off or Hi/Lo control of heaters via smartphone allows for incremental adjustment of heat output for precise control and more settings than ever all from your smartphone.
• Create Zones: Group your heaters to be controlled by a single command in different zones throughout your outdoor space.
• Peace of Mind: Set timers and schedules to automate your heating needs and never worry about leaving a heater on without supervision.
• Wi-Fi and Bluetooth Connectivity: Wi-Fi & Bluetooth enabled to receive commands from our Bromic Heating App from anywhere within your Wi-Fi network or 30ft via Bluetooth.
• Ethernet Connectivity: allowing for seamless ethernet integration for a full-proof connection to your outdoor heaters or 0-10V control for Home or Business Automation integration.
• Endless Installation Options: The new design allows the controls to be mounted in a variety of convenient locations both indoors and outdoors.

Note: The 5 Channel control has built in ethernet connectivity, for the 1& 2 channel remote an optional Expansion Board is needed to connect to your Home Automation or Business Management System.

• Control is indoor and outdoor rated and can be wall mounted, or ceiling mounted based on the model.
• Wall Mounting: Suitable for ALL dimmer models (1,2 & 5 Channel)
• Ceiling Mounted: Suitable for 1 & 2 channel dimmer models only

You can control all heaters through the Bromic Smart-Heat App. The control is compatible with single-element and dual-element electric heaters. All heaters assigned to the same "Channel" will be controlled together.

• Electric Models:
• Platinum and Tungsten Electric: Control up to 6000 Watts per Channel
• 1 Channel (1CH): Ideal for smaller installations controlling heaters up to 6000W on a single channel.
• 2 Channel (2CH): 2 Channel (2CH): Ideal for small to mid size installations controlling multiple heaters up to 6000W per channel.
• 5 Channel (5CH): Best for larger installations, offering multiple zones for control. ONLY compatible with 3 Phase Power applications.
