Rail Highlights:

• HAND-BENDABLE, no tools required, and FIELD-CUTTABLE brass rail sections keep their shape yet allow a variety of configurations

• LOW PROFILE RAIL 4 Ft and 8 Ft rail sections are less than half inch tall

• Bronze and Satin Nickel finishes available.

System Highlights:

• LOW PROFILE SYSTEM

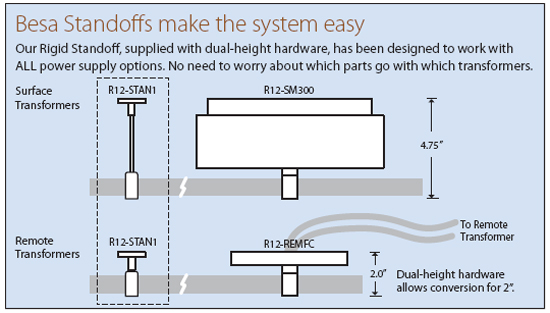

Remote Feed Canopy and Dual-height Standoff s allow a closer fi t to the ceiling

• EASY TO ORDER System

• 300W electronic or magnetic transformers support up to (6) 50W or (8) 35W low voltage elements

• Swivel Standoffs, Cable Hangers and Remote Transformers provide options for complex plans such as sloped or high ceilings

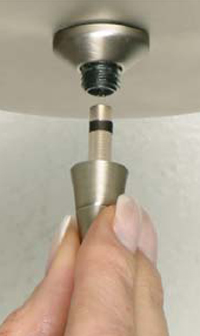

Designed to utilize the full Besa line of Quick-Connect pendant and spotlight elements

We also offer Quick-Connect Canopies and Accessories.

Kit or Custom?

The first question in considering monorail, is whether your room can use a basic system or if it needs something more. A kit is perfect if:

Your ceiling is only 8-10’ high

Your ceiling is level and not sloped

You want to add no more than six 50W or eight 35W pendant or spotlight elements

Your ceiling box is located where you plan to install the system, so you don’t require a remote transformer

If you could not check off all four items, you will likely need to select your individual components as shown on the next page. Our “System Planning/Ordering Guide” on the page after that will guide you in planning a system for sloped ceilings, or using remote transformers, or for longer and more complex design options.
